Description
Product Paramenters
|
Inverter
|
Hybrid Inverter – Rate Power 5.5kw – Peak Power 11kw – expandable
|
|

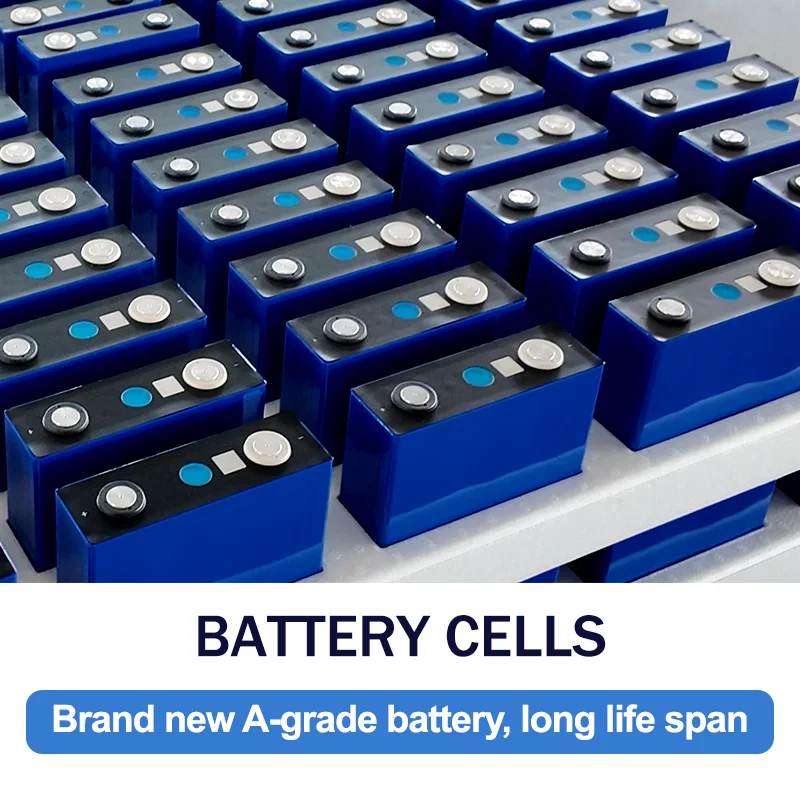

Built-in Battery
|
Premium Quality LiFePO4 Battery 51.2v – expandable
|
|
Battery Capacity
|
100AH – expandable
|
|
Rated Energy
|
5.12KWh – expandable
|
|
Maximum Current
|
100A
|
|
Voltage Range
|
43.2 – 58.4V
|
|
Communication
|
RS232-PC, RS485(B)-BAT, RS485(A)-Inverter, Canbus-Inverter
|
|
Cycle Life
|
>6000 cycles@25℃, 80% EOL
|
|

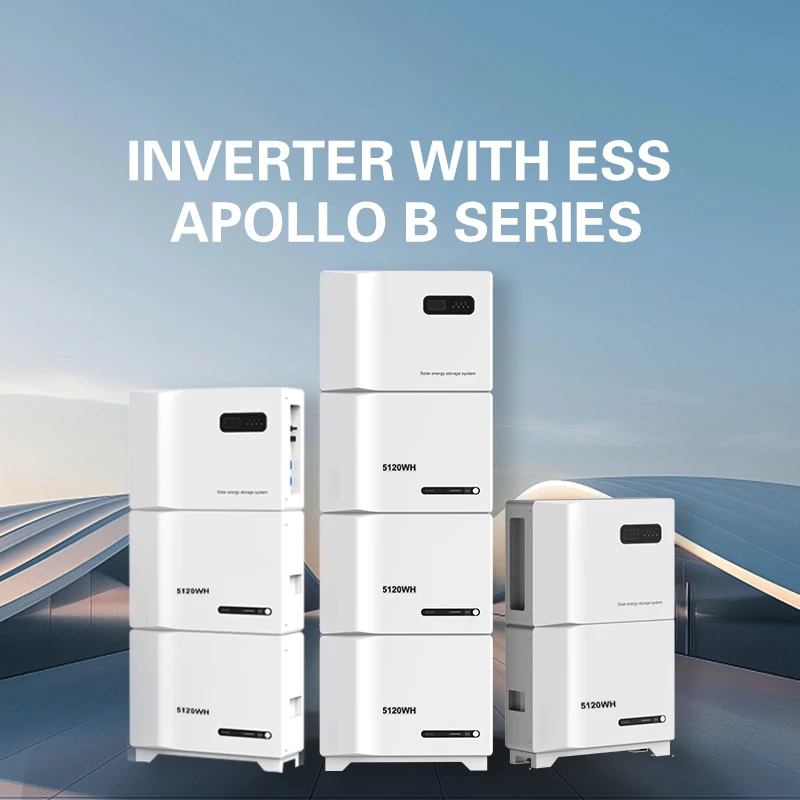

Scalability
|
Up to 4 parallel
|
|
Design Life
|
>15 years(25℃)
|
|
Weight
|
85kg
|
|
Dimension
|
65*43*24 65*43*24 65*43*24
|
|

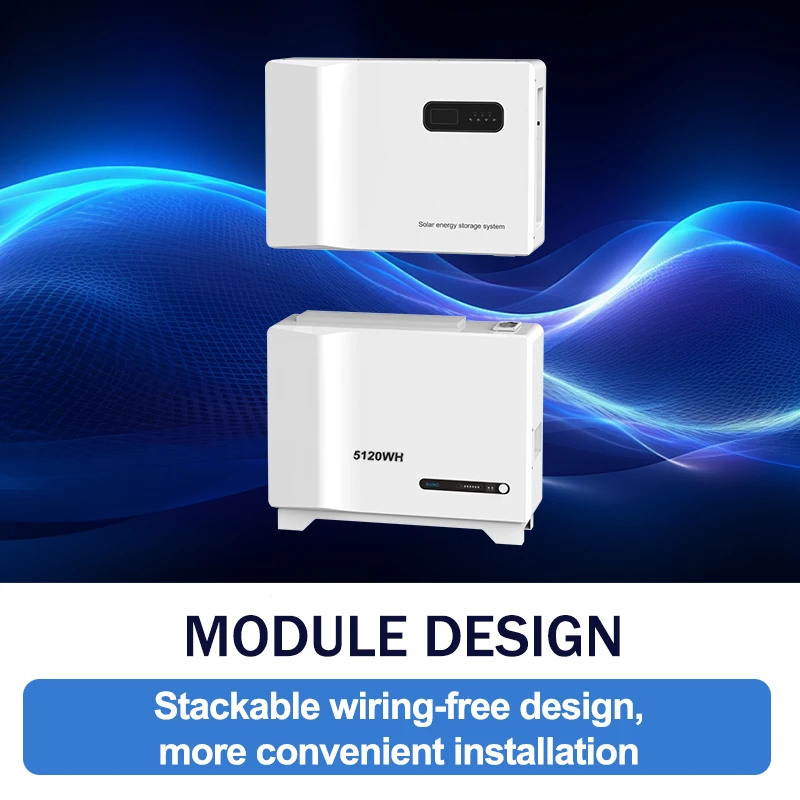

Installation Mode
|
Stackable
|
|
IP Grade
|
IP21
|
|
Certification
|
UN38.3, IEC62619(CB), CE-EMC,CE-LVD, ROHS,FCC, UL1973
|
|
Protection
|
BMS, Breaker, UPS, MPPT
|
|
Working Temperature
|
Charge: -10~60℃, Discharge: -20~60℃
|
|
Altitude
|
<2000
|
|
Humidity
|
<95%
|
Products Description
Details Images
100% Protection, available for most inverters Superior Quality

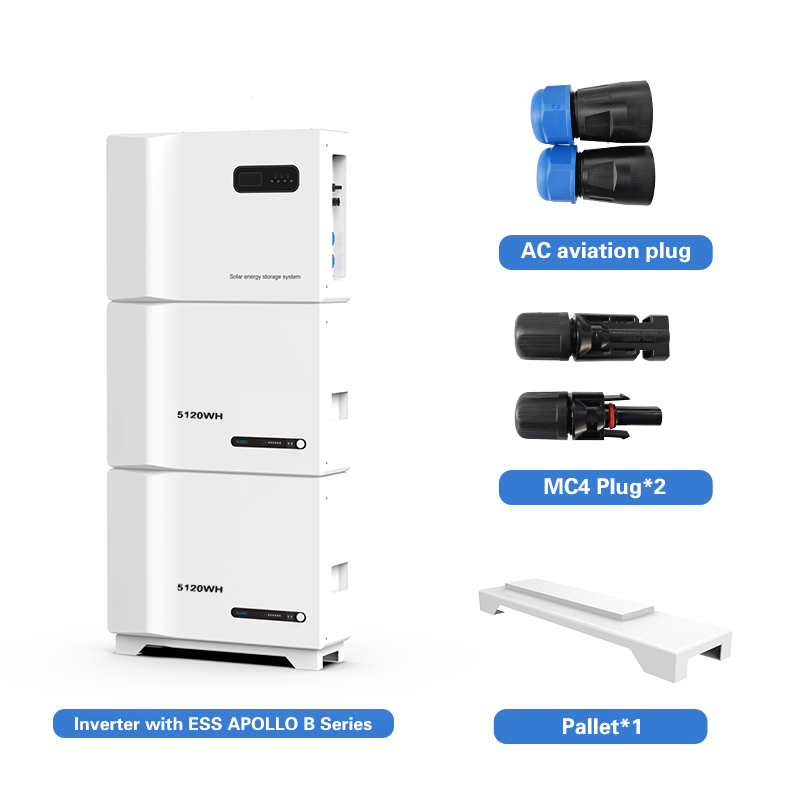

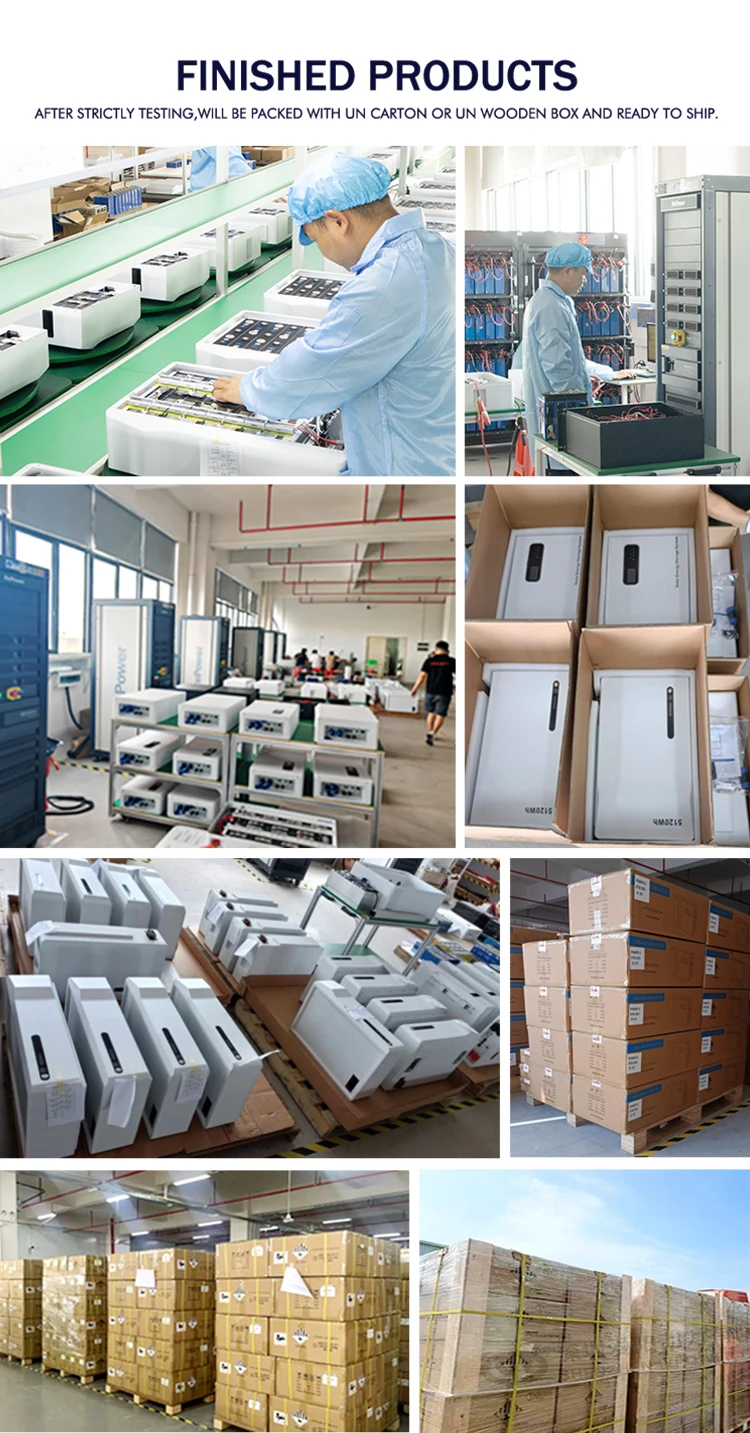

Product packaging
